Schema documentation for

Imported schema GeoDatasource.xsd

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Properties

attribute form default:	unqualified
element form default:	qualified

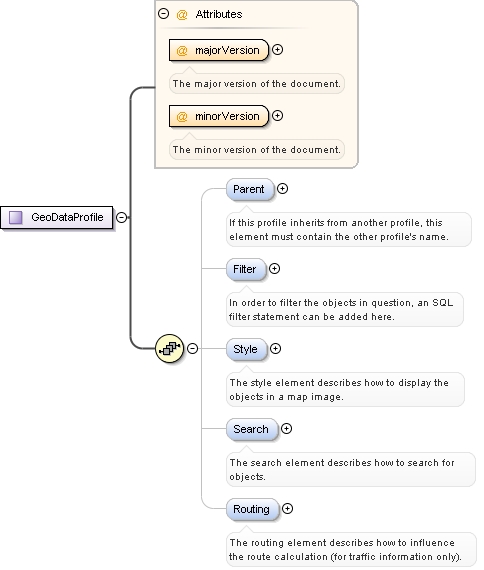

Element GeoDataProfile

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This profile contains information for the PTV xServer on how to use
and interpret geographic objects. All elements are optional. Each profile can
inherit from another profile.

Diagram

Type

GeoDataProfile

Properties

content:

complex

Model

Parent{0,1} , Filter{0,1} , Style{0,1} , Search{0,1} , Routing{0,1}

Children

Filter, Parent, Routing, Search, Style

Instance

<GeoDataProfile majorVersion="" minorVersion="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Parent>{0,1}</Parent>
  <Filter>{0,1}</Filter>
  <Style>{0,1}</Style>
  <Search>{0,1}</Search>
  <Routing>{0,1}</Routing>
</GeoDataProfile>

Attributes

QName

Type

Fixed

Default

Use

Annotation

majorVersion

xs:int

required

The major version of the document.

minorVersion

xs:int

required

The minor version of the document.

Element GeoDataProfile / Parent

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

If this profile inherits from another profile, this element
must contain the other profile's name.

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

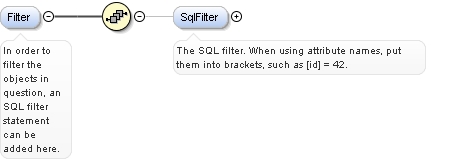

Element GeoDataProfile / Filter

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

In order to filter the objects in question, an SQL filter
statement can be added here.

Diagram

Properties

content:	complex
minOccurs:	0

Model

SqlFilter{0,1}

Children

SqlFilter

Instance

<Filter xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <SqlFilter>{0,1}</SqlFilter>
</Filter>

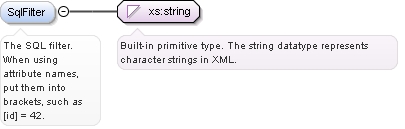

Element GeoDataProfile / Filter / SqlFilter

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The SQL filter. When using attribute names, put
them into brackets, such as [id] = 42.

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

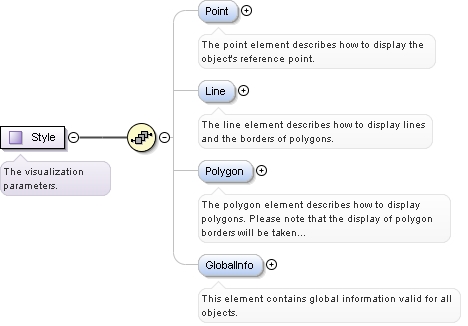

Element GeoDataProfile / Style

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The style element describes how to display the objects in a
map image.

Diagram

Type

Style

Properties

content:	complex
minOccurs:	0

Model

Point{0,1} , Line{0,1} , Polygon{0,1} , GlobalInfo{0,1}

Children

GlobalInfo, Line, Point, Polygon

Instance

<Style xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Point autoplacement="">{0,1}</Point>
  <Line>{0,1}</Line>
  <Polygon>{0,1}</Polygon>
  <GlobalInfo>{0,1}</GlobalInfo>
</Style>

Element Style / Point

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The point element describes how to display the object's
reference point.

Diagram

Properties

content:	complex
minOccurs:	0

Model

Description{0,1} , TextInfo{0,1} , Bitmap{0,1} , Symbol{0,1}

Children

Bitmap, Description, Symbol, TextInfo

Instance

<Point autoplacement="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Description>{0,1}</Description>
  <TextInfo>{0,1}</TextInfo>
  <Bitmap bitmapPath="" extension="">{0,1}</Bitmap>
  <Symbol>{0,1}</Symbol>
</Point>

Attributes

QName

Type

Fixed

Default

Use

Annotation

autoplacement

xs:boolean

optional

If autoplacement is enabled, symbols and bitmaps are
placed so that they do not cover each other, if possible. By default
autoplacement is disabled.

Element Style / Point / Description

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The description itself is not displayed on the map
but will be returned by PTV xMap Server. It can be a
concatenation of attributes separated by special
characters.

Diagram

Type

TextFields

Properties

content:	complex
minOccurs:	0

Model

TextField*

Children

TextField

Instance

<Description xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <TextField attributeName="" separator="">{0,unbounded}</TextField>
</Description>

Element TextFields / TextField

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

A single text field consisting of attribute name and separator
string. Please note that the last field's separator will be
ignored.

Diagram

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Attributes

QName

Type

Fixed

Default

Use

Annotation

attributeName

xs:string

required

The text attribute name to add.

separator

xs:string

required

The separator name to add.

Element Style / Point / TextInfo

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The text info string which will be displayed at
the reference point. Evaluated only, if a bitmap name is
set.

Diagram

Properties

content:	complex
minOccurs:	0

Model

Text{0,1} , Font{0,1} , LabelMinScale{0,1} , LabelMaxScale{0,1}

Children

Font, LabelMaxScale, LabelMinScale, Text

Instance

<TextInfo xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Text>{0,1}</Text>
  <Font>{0,1}</Font>
  <LabelMinScale MappingMethod="" value="">{0,1}</LabelMinScale>
  <LabelMaxScale MappingMethod="" value="">{0,1}</LabelMaxScale>
</TextInfo>

Element Style / Point / TextInfo / Text

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The text can be a concatenation of
attributes separated by special
characters.

Diagram

Type

TextFields

Properties

content:	complex
minOccurs:	0

Model

TextField*

Children

TextField

Instance

<Text xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <TextField attributeName="" separator="">{0,unbounded}</TextField>
</Text>

Element Style / Point / TextInfo / Font

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The font. Not yet
supported.

Diagram

Properties

content:	complex
minOccurs:	0

Model

Name{0,1} , Size{0,1} , Color{0,1} , Style{0,1} , Bpp{0,1}

Children

Bpp, Color, Name, Size, Style

Instance

<Font xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Name MappingMethod="" value="">{0,1}</Name>
  <Size MappingMethod="" value="">{0,1}</Size>
  <Color MappingMethod="" value="">{0,1}</Color>
  <Style MappingMethod="" value="">{0,1}</Style>
  <Bpp MappingMethod="" value="">{0,1}</Bpp>
</Font>

Element Style / Point / TextInfo / Font / Name

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The font name. If the font is
not available, a similar one is chosen
automatically. Default: Arial.

Diagram

Type

StringMapping

Type hierarchy

Mapping
- StringMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Name MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Name>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:string

optional

The target value.

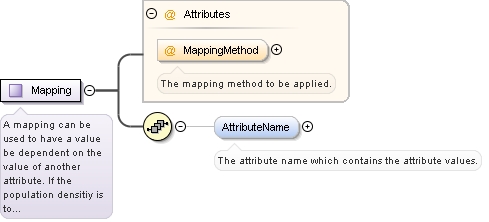

Element Mapping / AttributeName

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The attribute name which contains the attribute
values.

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Element StringMapping / Map

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The map which maps attrbute values to target
values.

Diagram

Type

StringMap

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

Key , Value

Children

Key, Value

Instance

<Map xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Key>{1,1}</Key>
  <Value>{1,1}</Value>
</Map>

Element StringMap / Key

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The criterion depending on the mapping
method.

Diagram

Type

xs:string

Properties

content:

simple

Element StringMap / Value

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The target value.

Diagram

Type

xs:string

Properties

content:

simple

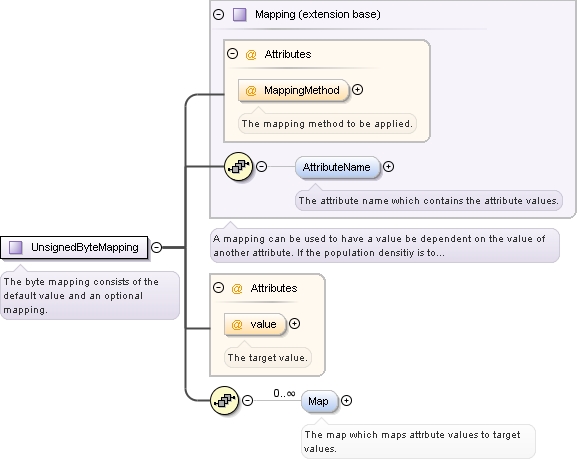

Element Style / Point / TextInfo / Font / Size

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The font size. Default:
10.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Size MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Size>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

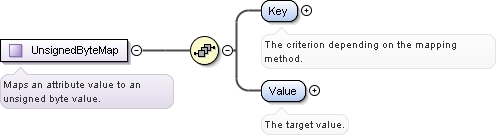

Element UnsignedByteMapping / Map

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The map which maps attrbute values to target
values.

Diagram

Type

UnsignedByteMap

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

Key , Value

Children

Key, Value

Instance

<Map xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Key>{1,1}</Key>
  <Value>{1,1}</Value>
</Map>

Element UnsignedByteMap / Key

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The criterion depending on the mapping
method.

Diagram

Type

xs:string

Properties

content:

simple

Element UnsignedByteMap / Value

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The target value.

Diagram

Type

xs:unsignedByte

Properties

content:

simple

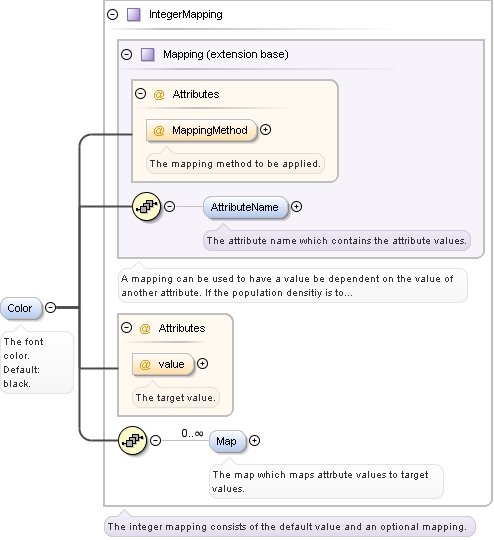

Element Style / Point / TextInfo / Font / Color

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The font color. Default:
black.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Color MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Color>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

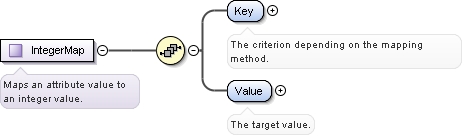

Element IntegerMapping / Map

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The map which maps attrbute values to target
values.

Diagram

Type

IntegerMap

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

Key , Value

Children

Key, Value

Instance

<Map xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Key>{1,1}</Key>
  <Value>{1,1}</Value>
</Map>

Element IntegerMap / Key

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The criterion depending on the mapping
method.

Diagram

Type

xs:string

Properties

content:

simple

Element IntegerMap / Value

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The target value.

Diagram

Type

xs:integer

Properties

content:

simple

Element Style / Point / TextInfo / Font / Style

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The font style, a bitmask of the
following bits: 0 bold, 1 italic, 2 underline, 3
strike-out, 4 frame, 5 smoothed. Default:
0.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Style MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Style>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Point / TextInfo / Font / Bpp

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The font color depth: 1 for
black and white, 8 otherwise. Default:
8.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Bpp MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Bpp>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Point / TextInfo / LabelMinScale

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The minimum scale from which the text
info string will be displayed. Default:
0.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<LabelMinScale MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</LabelMinScale>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / Point / TextInfo / LabelMaxScale

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The maximum scale from which the text
info string will be displayed. Default: always
visible.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<LabelMaxScale MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</LabelMaxScale>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / Point / Bitmap

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The bitmap which will be displayed at the
reference point.

Diagram

Properties

content:	complex
minOccurs:	0

Model

Name{0,1} , Height{0,1} , TransparencyColor{0,1}

Children

Height, Name, TransparencyColor

Instance

<Bitmap bitmapPath="" extension="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Name MappingMethod="" value="">{0,1}</Name>
  <Height MappingMethod="" value="">{0,1}</Height>
  <TransparencyColor MappingMethod="" value="">{0,1}</TransparencyColor>
</Bitmap>

Attributes

QName

Type

Fixed

Default

Use

Annotation

bitmapPath

xs:string

optional

An (optional )path to search for specific
bitmaps.

extension

xs:string

optional

The file extension for specific bitmaps
(e. g. '.bmp').

Element Style / Point / Bitmap / Name

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The bitmap given as a valid URL or as
a filename which must be available in the PTV xMap
Server's bitmap directory. Hint: please use
lower-case names, only.

Diagram

Type

StringMapping

Type hierarchy

Mapping
- StringMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Name MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Name>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:string

optional

The target value.

Element Style / Point / Bitmap / Height

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Not yet
implemented.

Diagram

Type

ShortMapping

Type hierarchy

Mapping
- ShortMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Height MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Height>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:short

optional

The target value.

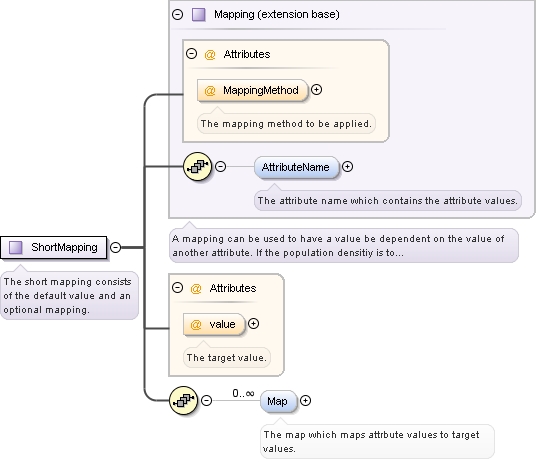

Element ShortMapping / Map

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The map which maps attrbute values to target
values.

Diagram

Type

ShortMap

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

Key , Value

Children

Key, Value

Instance

<Map xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Key>{1,1}</Key>
  <Value>{1,1}</Value>
</Map>

Element ShortMap / Key

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The criterion depending on the mapping
method.

Diagram

Type

xs:string

Properties

content:

simple

Element ShortMap / Value

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The target value.

Diagram

Type

xs:short

Properties

content:

simple

Element Style / Point / Bitmap / TransparencyColor

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

All pixels of the bitmap of this color
will not be displayed. By default, the color of the
top left pixel will be used.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<TransparencyColor MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</TransparencyColor>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / Point / Symbol

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Not yet implemented.

Diagram

Properties

content:	complex
minOccurs:	0

Model

ScaleFactor{0,1}

Children

ScaleFactor

Instance

<Symbol xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <ScaleFactor MappingMethod="" value="">{0,1}</ScaleFactor>
</Symbol>

Element Style / Point / Symbol / ScaleFactor

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Not yet
implemented.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<ScaleFactor MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</ScaleFactor>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Line

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The line element describes how to display lines and the
borders of polygons.

Diagram

Properties

content:	complex
minOccurs:	0

Model

Color{0,1} , Width{0,1} , Alpha{0,1} , Style{0,1} , Type{0,1} , ArrowColor{0,1} , ScaleFactor{0,1} , DisplacementFactor{0,1} , SideLine{0,1} , BorderLine{0,1}

Children

Alpha, ArrowColor, BorderLine, Color, DisplacementFactor, ScaleFactor, SideLine, Style, Type, Width

Instance

<Line xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Color MappingMethod="" value="">{0,1}</Color>
  <Width MappingMethod="" value="">{0,1}</Width>
  <Alpha MappingMethod="" value="">{0,1}</Alpha>
  <Style MappingMethod="" value="">{0,1}</Style>
  <Type MappingMethod="" value="">{0,1}</Type>
  <ArrowColor MappingMethod="" value="">{0,1}</ArrowColor>
  <ScaleFactor MappingMethod="" value="">{0,1}</ScaleFactor>
  <DisplacementFactor MappingMethod="" value="">{0,1}</DisplacementFactor>
  <SideLine>{0,1}</SideLine>
  <BorderLine>{0,1}</BorderLine>
</Line>

Element Style / Line / Color

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The line or border color. Default:
red.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Color MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Color>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / Line / Width

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The line width. Negative values indicate that the
absolute value is added to the current width of a motorway.
Default: 3.

Diagram

Type

ShortMapping

Type hierarchy

Mapping
- ShortMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Width MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Width>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:short

optional

The target value.

Element Style / Line / Alpha

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The line alpha value [0,255] (0 opaque, 255
transparent). Default: 0. Please note that alpha value must
equal 0 if side line or border line is used.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Alpha MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Alpha>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Line / Style

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The line or border style: 0 solid, 1 dash, 2 dot,
3 dash dot, 4 dash dot dot. Default: 0.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Style MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Style>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

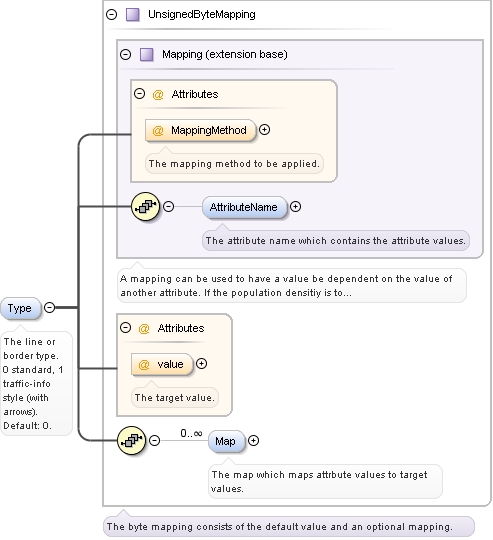

Element Style / Line / Type

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The line or border type. 0 standard, 1
traffic-info style (with arrows). Default: 0.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Type MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Type>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Line / ArrowColor

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The color of the arrows. Default:
white.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<ArrowColor MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</ArrowColor>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / Line / ScaleFactor

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This value [0,100] defines how to adapt the line
or border width to the map scale. 0 means no adaption, 100 means
linear adaption. Default: 0.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<ScaleFactor MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</ScaleFactor>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Line / DisplacementFactor

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Displacement value in percent of the line width.
Both the main and the side line are displaced. Default:
0.

Diagram

Type

ShortMapping

Type hierarchy

Mapping
- ShortMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<DisplacementFactor MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</DisplacementFactor>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:short

optional

The target value.

Element Style / Line / SideLine

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This element describes how to display the side
line. Please note that alpha must equal 0, if the side line is
used.

Diagram

Properties

content:	complex
minOccurs:	0

Model

Color{0,1} , Width{0,1} , Style{0,1} , Type{0,1}

Children

Color, Style, Type, Width

Instance

<SideLine xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Color MappingMethod="" value="">{0,1}</Color>
  <Width MappingMethod="" value="">{0,1}</Width>
  <Style MappingMethod="" value="">{0,1}</Style>
  <Type MappingMethod="" value="">{0,1}</Type>
</SideLine>

Element Style / Line / SideLine / Color

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The side line color. Default:
green.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Color MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Color>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / Line / SideLine / Width

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The side line width. Default:
1.

Diagram

Type

ShortMapping

Type hierarchy

Mapping
- ShortMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Width MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Width>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:short

optional

The target value.

Element Style / Line / SideLine / Style

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The side line style (see line style).
Default: 0.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Style MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Style>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

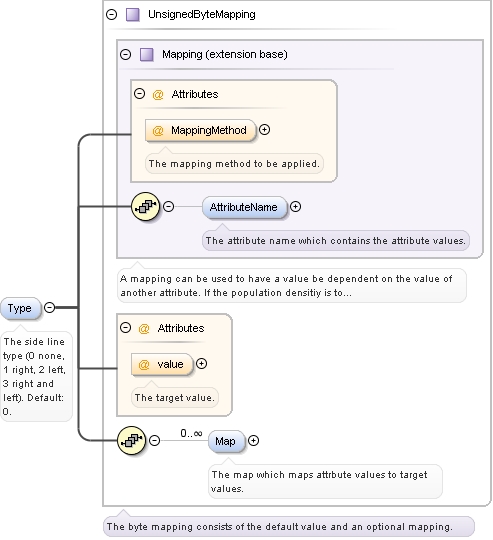

Element Style / Line / SideLine / Type

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The side line type (0 none, 1 right, 2
left, 3 right and left). Default:
0.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Type MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Type>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Line / BorderLine

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This element describes how to display the border
line. Please note that alpha must equal 0, if the border line is
used.

Diagram

Properties

content:	complex
minOccurs:	0

Model

Color{0,1} , Width{0,1} , Style{0,1}

Children

Color, Style, Width

Instance

<BorderLine xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Color MappingMethod="" value="">{0,1}</Color>
  <Width MappingMethod="" value="">{0,1}</Width>
  <Style MappingMethod="" value="">{0,1}</Style>
</BorderLine>

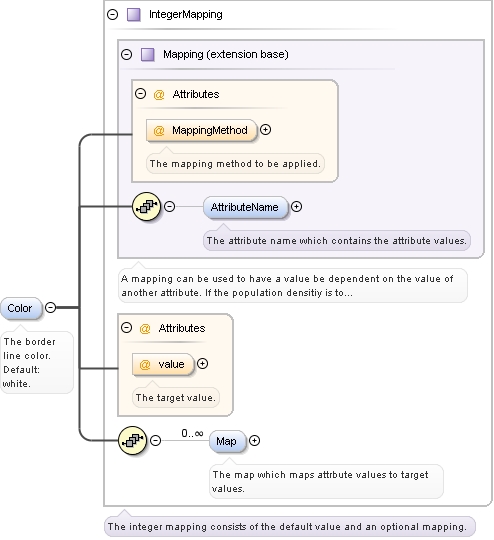

Element Style / Line / BorderLine / Color

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The border line color. Default:
white.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Color MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Color>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / Line / BorderLine / Width

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The border line width. Negative values
indicate that the absolute value is interpreted as
percentage of the complete line width (maximum is
-50, which means 50%). Default:
0.

Diagram

Type

ShortMapping

Type hierarchy

Mapping
- ShortMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Width MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Width>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:short

optional

The target value.

Element Style / Line / BorderLine / Style

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The border line style (see line
style). Default: 0.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Style MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Style>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Polygon

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The polygon element describes how to display polygons. Please
note that the display of polygon borders will be taken from the line
element.

Diagram

Properties

content:	complex
minOccurs:	0

Model

FillColor{0,1} , FillAlpha{0,1} , HatchColor{0,1} , HatchStyle{0,1} , HatchAlpha{0,1}

Children

FillAlpha, FillColor, HatchAlpha, HatchColor, HatchStyle

Instance

<Polygon xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <FillColor MappingMethod="" value="">{0,1}</FillColor>
  <FillAlpha MappingMethod="" value="">{0,1}</FillAlpha>
  <HatchColor MappingMethod="" value="">{0,1}</HatchColor>
  <HatchStyle MappingMethod="" value="">{0,1}</HatchStyle>
  <HatchAlpha MappingMethod="" value="">{0,1}</HatchAlpha>
</Polygon>

Element Style / Polygon / FillColor

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The fill color. In order to draw only the polygon
frame, set FillAlpha to 255. Default: blue.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<FillColor MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</FillColor>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / Polygon / FillAlpha

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The fill alpha value (see line alpha). Default:
128.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<FillAlpha MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</FillAlpha>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Polygon / HatchColor

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The hatch color. Default:
black.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<HatchColor MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</HatchColor>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / Polygon / HatchStyle

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The hatch style: 0 none, 1 horizontal, 2 vertical,
3 diagonal from left top to right bottom, 4 diagonal from left
bottom to right top, 5 horizontal and vertical crossed, 6
diagonal crossed. Default: 0.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<HatchStyle MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</HatchStyle>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / Polygon / HatchAlpha

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The hatch alpha value (see line alpha). Default:
0. Not yet implemented, currently HatchAlpha =
FillAlpha.

Diagram

Type

UnsignedByteMapping

Type hierarchy

Mapping
- UnsignedByteMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<HatchAlpha MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</HatchAlpha>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Element Style / GlobalInfo

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This element contains global information valid for all
objects.

Diagram

Properties

content:	complex
minOccurs:	0

Model

ObjectID{0,1} , MinScale{0,1} , MaxScale{0,1} , DrawPriority{0,1}

Children

DrawPriority, MaxScale, MinScale, ObjectID

Instance

<GlobalInfo xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <ObjectID attributeName="">{0,1}</ObjectID>
  <MinScale MappingMethod="" value="">{0,1}</MinScale>
  <MaxScale MappingMethod="" value="">{0,1}</MaxScale>
  <DrawPriority MappingMethod="" value="">{0,1}</DrawPriority>
</GlobalInfo>

Element Style / GlobalInfo / ObjectID

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

If the object has an ID other than the one
configured in the database configuration, the attribute name can
be given here. This feature is useful when the object ID is
non-numerical.

Diagram

Properties

content:	complex
minOccurs:	0

Attributes

QName

Type

Fixed

Default

Use

Annotation

attributeName

xs:string

required

The attribute name for the
ID.

Element Style / GlobalInfo / MinScale

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The minimum scale value for the display of the
objects. Default: 0.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<MinScale MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</MinScale>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / GlobalInfo / MaxScale

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The maximum scale value for the display of the
objects. Default: always visible.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<MaxScale MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</MaxScale>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Element Style / GlobalInfo / DrawPriority

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The draw priority of the objects [1,49999].
Streets are displayed at priority 100, town names at 500.
Default: 25000.

Diagram

Type

IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<DrawPriority MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</DrawPriority>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

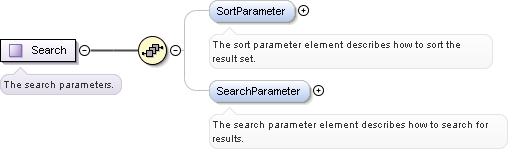

Element GeoDataProfile / Search

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The search element describes how to search for
objects.

Diagram

Type

Search

Properties

content:	complex
minOccurs:	0

Model

SortParameter{0,1} , SearchParameter{0,1}

Children

SearchParameter, SortParameter

Instance

<Search xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <SortParameter>{0,1}</SortParameter>
  <SearchParameter countryCodeType="" maximumResultSize="" maximumSearchRange="" minimumSearchSimilarity="" padResultList="">{0,1}</SearchParameter>
</Search>

Element Search / SortParameter

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The sort parameter element describes how to sort the result
set.

Diagram

Properties

content:	complex
minOccurs:	0

Model

SortField*

Children

SortField

Instance

<SortParameter xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <SortField attributeName="" order="">{0,unbounded}</SortField>
</SortParameter>

Element Search / SortParameter / SortField

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

A single sort field described by its name and the
sort order.

Diagram

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Attributes

QName

Type

Fixed

Default

Use

Annotation

attributeName

xs:string

required

The name of the sort
field.

order

SortOrder

required

The sort order to use for this
field.

Element Search / SearchParameter

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The search parameter element describes how to search for
results.

Diagram

Properties

content:	complex
minOccurs:	0

Model

SearchField*

Children

SearchField

Instance

<SearchParameter countryCodeType="" maximumResultSize="" maximumSearchRange="" minimumSearchSimilarity="" padResultList="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <SearchField attributeName="" fuzzy="" multiword="" prefix="">{0,unbounded}</SearchField>
</SearchParameter>

Attributes

QName

Type

Fixed

Default

Use

Annotation

countryCodeType

xs:int

optional

The representation of a country code: 0 country code
(number), 1 ISO2, 2 ISO3, 3 country code plate. Default:
3.

maximumResultSize

xs:int

optional

The maximum result set size. Default: 250. Please note
that the result set is clipped after sorting.

maximumSearchRange

xs:int

optional

When searching for a location, this defines the search
radius in meters. Default: 300000.

minimumSearchSimilarity

xs:float

optional

The similarity of the fuzzy search is controlled by
this parameter in the interval [0.0,1.0], whereby 1.0 means exact
match and 0.0 means no similarity. Default: 0.7. Please note that
small changes on this value can have large effect on the result
set.

padResultList

xs:boolean

optional

The result list is padded with less precise results up
to maximumResultSize. Default: false.

Element Search / SearchParameter / SearchField

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

A single search field described by its name and
the search mode(s). Each search mode can be enabled or disabled.
The execution sequence is fuzzy, prefix, and multiword. Whenever
a search mode has found at least one result, the following
search modes are not executed anymore. All search modes are
case-insensitive.

Diagram

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Attributes

QName

Type

Fixed

Default

Use

Annotation

attributeName

xs:string

required

The name of the search
field.

fuzzy

xs:boolean

optional

The search string must be similar to the
the field content Searching for 'Kalrsruhe' matches
'Karlsruhe'. Please set the minimumSearchSimilarity
attribute of the SearchParameter
element.

multiword

xs:boolean

optional

The search string must match one word of
the field content exactly. This can produce a large
result set. Searching for 'city' matches 'city
hall'.

prefix

xs:boolean

optional

The search string must match the field's
beginning. Searching for 'Karl' matches
'Karlsruhe'.

Element GeoDataProfile / Routing

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The routing element describes how to influence the route
calculation (for traffic information only).

Diagram

Properties

content:	complex
minOccurs:	0

Model

Malus{0,1}

Children

Malus

Instance

<Routing xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Malus malusType="" MappingMethod="" value="">{0,1}</Malus>
</Routing>

Element GeoDataProfile / Routing / Malus

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The malus for the object can either be relative to
the calculating cost of the routing path in question or
absolute, i.e. a time value. For more information on malus
values in general, please refer the the API documentation of PTV
xRoute Server, class ExceptionPath. If relative, values within
[-99;2501] are valid for a relative malus and are given in
percent of the original segment cost which will be added. The
maximum of 2501 blocks the segments. For an absolute malus the
value is given in seconds which will be added to the routing
time. A negative value will block the segments. Default: 0
(unchanged segment cost or time).

Diagram

Type

extension of IntegerMapping

Type hierarchy

Mapping
- IntegerMapping

Properties

content:	complex
minOccurs:	0

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Instance

<Malus malusType="" MappingMethod="" value="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeName>{0,1}</AttributeName>
  <Map>{0,unbounded}</Map>
</Malus>

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

malusType

MalusType

required

The malus type to be applied for
malus values.

value

xs:integer

optional

The target value.

Element BooleanMap / Key

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The criterion depending on the mapping
method.

Diagram

Type

xs:string

Properties

content:

simple

Element BooleanMap / Value

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The target value.

Diagram

Type

xs:boolean

Properties

content:

simple

Element BooleanMapping / Map

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The map which maps attrbute values to target
values.

Diagram

Type

BooleanMap

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

Key , Value

Children

Key, Value

Instance

<Map xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Key>{1,1}</Key>
  <Value>{1,1}</Value>
</Map>

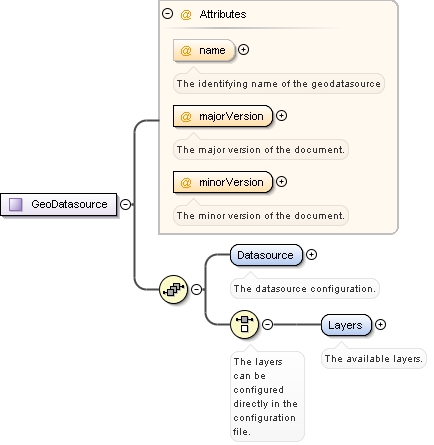

Element GeoDatasource

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This file configures the datasource for processing geographical data
stored in a database by the PTV xServer.

Diagram

Type

GeoDatasource

Properties

content:

complex

Model

Datasource , (Layers)

Children

Datasource, Layers

Instance

<GeoDatasource majorVersion="" minorVersion="" name="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Datasource driver="" password="" url="" user="">{1,1}</Datasource>
  <Layers default="">{1,1}</Layers>
</GeoDatasource>

Attributes

QName

Type

Fixed

Default

Use

Annotation

majorVersion

xs:int

required

The major version of the document.

minorVersion

xs:int

required

The minor version of the document.

name

xs:string

optional

The identifying name of the geodatasource

Element GeoDatasource / Datasource

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The datasource configuration.

Diagram

Properties

content:

complex

Attributes

QName

Type

Fixed

Default

Use

Annotation

driver

xs:string

required

The (Java) class name to use for the database
access.

password

xs:string

required

The password of the user for the database
access.

url

xs:string

required

The connection URL for the database
access.

user

xs:string

required

The name of the user for the database
access.

Element GeoDatasource / Layers

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The available layers.

Diagram

Properties

content:

complex

Model

LayerInfo+

Children

LayerInfo

Instance

<Layers default="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <LayerInfo coordType="" fetchSize="" maxRows="" name="" table="">{1,unbounded}</LayerInfo>
</Layers>

Attributes

QName

Type

Fixed

Default

Use

Annotation

default

xs:string

optional

The default layer used for xLocate poi search
backward compatiblity.

Element GeoDatasource / Layers / LayerInfo

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This element represents one single layer
configured by name, database table and co-ordinate
format.

Diagram

Properties

content:	complex
maxOccurs:	unbounded

Model

Profiles , AttributeMappings , EngineParameters{0,1}

Children

AttributeMappings, EngineParameters, Profiles

Instance

<LayerInfo coordType="" fetchSize="" maxRows="" name="" table="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Profiles>{1,1}</Profiles>
  <AttributeMappings>{1,1}</AttributeMappings>
  <EngineParameters aliasForColumnName="" aliasTypeColumnName="" poiIdColumnName="">{0,1}</EngineParameters>
</LayerInfo>

Attributes

QName

Type

Fixed

Default

Use

Annotation

coordType

CoordType

required

The coordinate format used by the
layer data.

fetchSize

xs:int

optional

Optional attribute to optimize the
fetch size for select operations. The default fetch
size is 20.

maxRows

xs:int

optional

Optional attribute to set the maximum
number of rows for select operations. The default
row size is 100000.

name

xs:string

required

The identifying name of the
layer.

table

xs:string

required

The database table name containing the
layer data.

Element GeoDatasource / Layers / LayerInfo / Profiles

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The profiles.

Diagram

Properties

content:

complex

Model

Profile+

Children

Profile

Instance

<Profiles xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Profile filename="" name="">{1,unbounded}</Profile>
</Profiles>

Element GeoDatasource / Layers / LayerInfo / Profiles / Profile

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This element configures a single
profile.

Diagram

Properties

content:	complex
maxOccurs:	unbounded

Model

GeoDataProfile{0,1}

Children

GeoDataProfile

Instance

<Profile filename="" name="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <GeoDataProfile majorVersion="" minorVersion="">{0,1}</GeoDataProfile>
</Profile>

Attributes

QName

Type

Fixed

Default

Use

Annotation

filename

xs:string

optional

If the GeoDataProfile element is
not set, the file name to load the profile from.
This attribute is not applicable if the
GeoDatasource is set by XML
snippet.

name

xs:string

required

The name of the
GeoDataProfile.

Element GeoDatasource / Layers / LayerInfo / Profiles / Profile / GeoDataProfile

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This element configures the
content of a profile.

Diagram

Type

GeoDataProfile

Properties

content:	complex
minOccurs:	0
maxOccurs:	1

Model

Parent{0,1} , Filter{0,1} , Style{0,1} , Search{0,1} , Routing{0,1}

Children

Filter, Parent, Routing, Search, Style

Instance

<GeoDataProfile majorVersion="" minorVersion="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <Parent>{0,1}</Parent>
  <Filter>{0,1}</Filter>
  <Style>{0,1}</Style>
  <Search>{0,1}</Search>
  <Routing>{0,1}</Routing>
</GeoDataProfile>

Attributes

QName

Type

Fixed

Default

Use

Annotation

majorVersion

xs:int

required

The major version of the document.

minorVersion

xs:int

required

The minor version of the document.

Element GeoDatasource / Layers / LayerInfo / AttributeMappings

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The mappings from a database
column name to an attribute name. Please note that
the attributes id, x, y are
mandatory.

Diagram

Properties

content:

complex

Model

AttributeMapping{3,unbounded}

Children

AttributeMapping

Instance

<AttributeMappings xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <AttributeMapping attributeName="" columnName="" type="">{3,unbounded}</AttributeMapping>
</AttributeMappings>

Element GeoDatasource / Layers / LayerInfo / AttributeMappings / AttributeMapping

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

This element configures a single
attribute mapping which maps a column name to an
attribute name.

Diagram

Properties

content:	complex
minOccurs:	3
maxOccurs:	unbounded

Attributes

QName

Type

Fixed

Default

Use

Annotation

attributeName

xs:string

required

The attribute name for the
mapping.

columnName

xs:string

required

The column name for the
mapping.

type

xs:string

optional

The datatype of the mapping. Any
primitive Java datatype or 'java.lang.String'. If
not set, the latter is default.

Element GeoDatasource / Layers / LayerInfo / EngineParameters

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The parameters which are necessary
for the respective engine. They will not be
returned to the client.

Diagram

Properties

content:	complex
minOccurs:	0

Model

BoundingBox{0,1} , Rendering{0,1} , Traffic{0,1} , Search{0,1}

Children

BoundingBox, Rendering, Search, Traffic

Instance

<EngineParameters aliasForColumnName="" aliasTypeColumnName="" poiIdColumnName="" xmlns="http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess">
  <BoundingBox bottomColumnName="" leftColumnName="" rightColumnName="" topColumnName="">{0,1}</BoundingBox>
  <Rendering geometryColumnName="" geometryType="">{0,1}</Rendering>
  <Traffic exceptionPathColumnName="">{0,1}</Traffic>
  <Search luceneIndexPath="">{0,1}</Search>
</EngineParameters>

Attributes

QName

Type

Fixed

Default

Use

Annotation

aliasForColumnName

xs:string

optional

Sets optional database column
containing the alias.

aliasTypeColumnName

xs:string

optional

Sets optional database column
containing the alias type.

poiIdColumnName

xs:string

optional

Sets optional database column
containing the ID.

Element GeoDatasource / Layers / LayerInfo / EngineParameters / BoundingBox

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Attributes containing the
bounding box of geographic
objects.

Diagram

Properties

content:	complex
minOccurs:	0

Attributes

QName

Type

Fixed

Default

Use

Annotation

bottomColumnName

xs:string

required

The name of the column that sets
the minimum y coordinate of the bounding
box.

leftColumnName

xs:string

required

The name of the column that sets
the mininum x coordinate of the bounding
box.

rightColumnName

xs:string

required

The name of the column that sets
the maximum x coordinate of the bounding
box.

topColumnName

xs:string

required

The name of the column that sets
the maximum y coordinate of the bounding
box.

Element GeoDatasource / Layers / LayerInfo / EngineParameters / Rendering

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Attributes necessary for
rendering geometry data. Please note that the
bounding box is mandatory, if the Rendering
element is present.

Diagram

Properties

content:	complex
minOccurs:	0

Attributes

QName

Type

Fixed

Default

Use

Annotation

geometryColumnName

xs:string

required

The name of the geometry
column.

geometryType

GeometryType

required

The geometry type of the
geometry data.

Element GeoDatasource / Layers / LayerInfo / EngineParameters / Traffic

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Attributes necessary for traffic
information.

Diagram

Properties

content:	complex
minOccurs:	0

Attributes

QName

Type

Fixed

Default

Use

Annotation

exceptionPathColumnName

xs:string

required

The database column containing
the exception path of the traffic
information.

Element GeoDatasource / Layers / LayerInfo / EngineParameters / Search

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Attributes necessary for
searching for objects.

Diagram

Properties

content:	complex
minOccurs:	0

Attributes

QName

Type

Fixed

Default

Use

Annotation

luceneIndexPath

xs:string

optional

Sets the path to the Lucene
Index to be used to search for
objects.

Complex Type GeoDataProfile

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Diagram

Used by

Elements

GeoDataProfile, GeoDatasource/Layers/LayerInfo/Profiles/Profile/GeoDataProfile

Model

Parent{0,1} , Filter{0,1} , Style{0,1} , Search{0,1} , Routing{0,1}

Children

Filter, Parent, Routing, Search, Style

Attributes

QName

Type

Fixed

Default

Use

Annotation

majorVersion

xs:int

required

The major version of the document.

minorVersion

xs:int

required

The minor version of the document.

Complex Type Style

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The visualization parameters.

Diagram

Used by

Element

GeoDataProfile/Style

Model

Point{0,1} , Line{0,1} , Polygon{0,1} , GlobalInfo{0,1}

Children

GlobalInfo, Line, Point, Polygon

Complex Type TextFields

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The text attributes to be concatenated.

Diagram

Used by

Elements

Style/Point/Description, Style/Point/TextInfo/Text

Model

TextField*

Children

TextField

Complex Type StringMapping

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The string mapping consists of the default value and an optional
mapping.

Diagram

Type

extension of Mapping

Type hierarchy

Mapping
- StringMapping

Used by

Elements

Style/Point/Bitmap/Name, Style/Point/TextInfo/Font/Name

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:string

optional

The target value.

Complex Type Mapping

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

A mapping can be used to have a value be dependent on the value of
another attribute.              If the population densitiy is to be visualized, the
color of an area depends on the respective value in the database.

Diagram

Used by

Complex Types

BooleanMapping, IntegerMapping, ShortMapping, StringMapping, UnsignedByteMapping

Model

AttributeName{0,1}

Children

AttributeName

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

Simple Type MappingMethod

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The mapping method to be applied.

Diagram

Type

restriction of xs:string

Facets

enumeration

DirectMappingMethod

The map will be ignored, instead the attribute value itself is
used. If it is null, the default value will be used. If the default value
does not exist, the complete object will be ignored. This mapping method can
be used for all data types. Use case: The bitmap name is taken directly from
the database.

enumeration

IntervalMappingMethod

Each map key denotes the upper bound of an interval. If the
attribute value is within an interval, the corresponding value will be used.
If the attribute value is greater than the largest key, the default value
will be used. If the default value does not exist, the complete object will
be ignored. This mapping method can be used for all data types (for strings
lexicographical order will be used). Use case: Visualize population density
by filling areas with a fixed number of different colors.

enumeration

KeyValueMappingMethod

Maps distinct attribute values to distinct target values,
case-insensitively for strings The key can also contain a comma-separated
list of attribute values in order to map several attributes to a single
value. If the attribute value does not match any key, the default value will
be used.If the default value does not exist, the complete object will be
ignored.  This mapping method can be used for all data types. Use case:
Choose a bitmap name for each type of object.

enumeration

LinearMappingMethod

Exactly 2 mappings must be present, the target value is a
linear interpolation. If the attribute value is less than the first key or
greater than the second key, the default value will be used. If the default
value does not exist, the complete object will be ignored. This mapping
method can only be used for numercial data. Use case: The font size depends
on the city's population, the larger the city the larger the
font.

enumeration

TemplateMappingMethod

This mapping method evaluates the value-property only and
allows to specify the resulting string by using any characters and all
attributes as variables like this: ${attributename}. Here's an example:
value='${street} / ${housenr}'. If street and housenr where 'Oxford Street'
and '4' then the result would be 'Oxford Street / 4'.

Used by

Attribute

Mapping/@MappingMethod

Complex Type StringMap

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Maps an attribute value to a string value.

Diagram

Used by

Element

StringMapping/Map

Model

Key , Value

Children

Key, Value

Complex Type UnsignedByteMapping

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The byte mapping consists of the default value and an optional
mapping.

Diagram

Type

extension of Mapping

Type hierarchy

Mapping
- UnsignedByteMapping

Used by

Elements

Style/Line/Alpha, Style/Line/BorderLine/Style, Style/Line/ScaleFactor, Style/Line/SideLine/Style, Style/Line/SideLine/Type, Style/Line/Style, Style/Line/Type, Style/Point/Symbol/ScaleFactor, Style/Point/TextInfo/Font/Bpp, Style/Point/TextInfo/Font/Size, Style/Point/TextInfo/Font/Style, Style/Polygon/FillAlpha, Style/Polygon/HatchAlpha, Style/Polygon/HatchStyle

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:unsignedByte

optional

The target value.

Complex Type UnsignedByteMap

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Maps an attribute value to an unsigned byte value.

Diagram

Used by

Element

UnsignedByteMapping/Map

Model

Key , Value

Children

Key, Value

Complex Type IntegerMapping

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The integer mapping consists of the default value and an optional
mapping.

Diagram

Type

extension of Mapping

Type hierarchy

Mapping
- IntegerMapping

Used by

Elements

GeoDataProfile/Routing/Malus, Style/GlobalInfo/DrawPriority, Style/GlobalInfo/MaxScale, Style/GlobalInfo/MinScale, Style/Line/ArrowColor, Style/Line/BorderLine/Color, Style/Line/Color, Style/Line/SideLine/Color, Style/Point/Bitmap/TransparencyColor, Style/Point/TextInfo/Font/Color, Style/Point/TextInfo/LabelMaxScale, Style/Point/TextInfo/LabelMinScale, Style/Polygon/FillColor, Style/Polygon/HatchColor

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:integer

optional

The target value.

Complex Type IntegerMap

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Maps an attribute value to an integer value.

Diagram

Used by

Element

IntegerMapping/Map

Model

Key , Value

Children

Key, Value

Complex Type ShortMapping

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The short mapping consists of the default value and an optional
mapping.

Diagram

Type

extension of Mapping

Type hierarchy

Mapping
- ShortMapping

Used by

Elements

Style/Line/BorderLine/Width, Style/Line/DisplacementFactor, Style/Line/SideLine/Width, Style/Line/Width, Style/Point/Bitmap/Height

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:short

optional

The target value.

Complex Type ShortMap

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Maps an attribute value to a short value.

Diagram

Used by

Element

ShortMapping/Map

Model

Key , Value

Children

Key, Value

Complex Type Search

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The search parameters.

Diagram

Used by

Element

GeoDataProfile/Search

Model

SortParameter{0,1} , SearchParameter{0,1}

Children

SearchParameter, SortParameter

Simple Type SortOrder

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The sort order to be applied.

Diagram

Type

restriction of xs:string

Facets

enumeration

Ascending

The ascending order.

enumeration

Descending

The descending order.

Used by

Attribute

Search/SortParameter/SortField/@order

Simple Type MalusType

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The malus type.

Diagram

Type

restriction of xs:string

Facets

enumeration

Relative

The type to use for relative malus values.

enumeration

Absolute

The type to use for absolute malus values.

Used by

Attribute

GeoDataProfile/Routing/Malus/@malusType

Complex Type BooleanMap

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

Maps an attribute value to a boolean value.

Diagram

Used by

Element

BooleanMapping/Map

Model

Key , Value

Children

Key, Value

Complex Type BooleanMapping

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The boolean mapping consists of the default value and an optional
mapping.

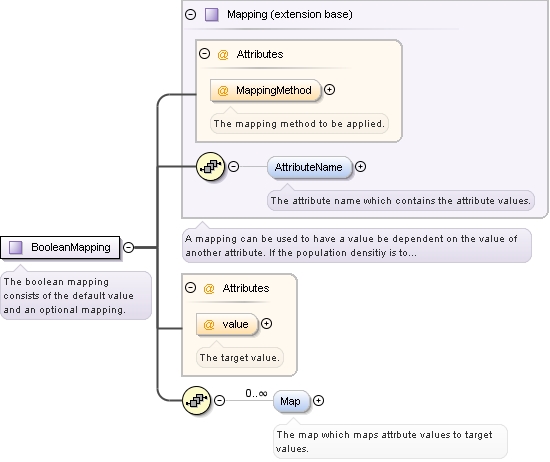

Diagram

Type

extension of Mapping

Type hierarchy

Mapping
- BooleanMapping

Model

AttributeName{0,1} , Map*

Children

AttributeName, Map

Attributes

QName

Type

Fixed

Default

Use

Annotation

MappingMethod

optional

The mapping method to be applied.

value

xs:boolean

optional

The target value.

Complex Type GeoDatasource

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Diagram

Used by

Element

GeoDatasource

Model

Datasource , (Layers)

Children

Datasource, Layers

Attributes

QName

Type

Fixed

Default

Use

Annotation

majorVersion

xs:int

required

The major version of the document.

minorVersion

xs:int

required

The minor version of the document.

name

xs:string

optional

The identifying name of the geodatasource

Simple Type GeometryType

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The geometry type to be applied.

Diagram

Type

restriction of xs:string

Facets

enumeration

WKB

The geometry type 'Well-Known-Binary'.

enumeration

WKT

The geometry type 'Well-Known-Text'.

enumeration

KML

The geometry type
'Keyhole-Markup-Language'.

Used by

Attribute

GeoDatasource/Layers/LayerInfo/EngineParameters/Rendering/@geometryType

Simple Type CoordType

Namespace

http://www.ptv.de/com/ptvag/xserver/engines/xpoidbaccess

Annotations

The coordinate format to be applied. Note: The use of SRIDs is not
supported here!

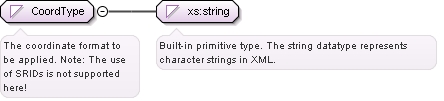

Diagram

Type

restriction of xs:string

Facets

enumeration

OG_GEODECIMAL

OpenGIS representation of WGS 84 co-ordinates. Example
x=8.2505556, y=48.7627778.

enumeration

PTV_MERCATOR

Mercator projection. Example x=917420,
y=6227729.

enumeration

PTV_GEOMINSEC

PTV representation of co-ordinates by degree, minute, and
second. Example x=815020, y=4845460.

enumeration

PTV_GEODECIMAL

PTV representation of WGS 84 co-ordinates. Example x=825056,
y=4876278.

enumeration

PTV_CONFORM

PTV representation of conform co-ordinates. Example x=1672358,
y=1620743.

enumeration

PTV_SUPERCONFORM

PTV representation of super-conform co-ordinates. Example
x=5072358, y=3320743.

enumeration

PTV_SMARTUNITS

PTV internal co-ordinate format. Example x=4352286,
y=5456405.

Used by

Attribute

GeoDatasource/Layers/LayerInfo/@coordType

Attribute TextFields / TextField / @attributeName

Namespace

No namespace

Annotations

The text attribute name to add.

Type

xs:string

Properties

use:	required

Used by

Element

TextFields/TextField

Attribute TextFields / TextField / @separator

Namespace

No namespace

Annotations

The separator name to add.

Type

xs:string

Properties

use:	required

Used by

Element

TextFields/TextField

Attribute Mapping / @MappingMethod

Namespace

No namespace

Annotations

The mapping method to be applied.

Type

MappingMethod

Properties

use:	optional

Facets

enumeration

DirectMappingMethod

The map will be ignored, instead the attribute value itself is
used. If it is null, the default value will be used. If the default value
does not exist, the complete object will be ignored. This mapping method can
be used for all data types. Use case: The bitmap name is taken directly from
the database.

enumeration

IntervalMappingMethod

Each map key denotes the upper bound of an interval. If the
attribute value is within an interval, the corresponding value will be used.
If the attribute value is greater than the largest key, the default value
will be used. If the default value does not exist, the complete object will
be ignored. This mapping method can be used for all data types (for strings
lexicographical order will be used). Use case: Visualize population density
by filling areas with a fixed number of different colors.

enumeration

KeyValueMappingMethod

Maps distinct attribute values to distinct target values,
case-insensitively for strings The key can also contain a comma-separated
list of attribute values in order to map several attributes to a single
value. If the attribute value does not match any key, the default value will
be used.If the default value does not exist, the complete object will be
ignored.  This mapping method can be used for all data types. Use case:
Choose a bitmap name for each type of object.

enumeration

LinearMappingMethod

Exactly 2 mappings must be present, the target value is a
linear interpolation. If the attribute value is less than the first key or
greater than the second key, the default value will be used. If the default
value does not exist, the complete object will be ignored. This mapping
method can only be used for numercial data. Use case: The font size depends
on the city's population, the larger the city the larger the
font.

enumeration

TemplateMappingMethod

This mapping method evaluates the value-property only and
allows to specify the resulting string by using any characters and all
attributes as variables like this: ${attributename}. Here's an example:
value='${street} / ${housenr}'. If street and housenr where 'Oxford Street'
and '4' then the result would be 'Oxford Street / 4'.

Used by

Complex Type

Mapping

Attribute StringMapping / @value

Namespace

No namespace

Annotations

The target value.

Type

xs:string

Properties

use:	optional

Used by

Complex Type

StringMapping

Attribute UnsignedByteMapping / @value

Namespace

No namespace

Annotations

The target value.

Type

xs:unsignedByte

Properties

use:	optional

Used by

Complex Type

UnsignedByteMapping

Attribute IntegerMapping / @value

Namespace

No namespace

Annotations

The target value.

Type

xs:integer

Properties

use:	optional

Used by

Complex Type

IntegerMapping

Attribute ShortMapping / @value

Namespace

No namespace

Annotations

The target value.

Type

xs:short

Properties

use:	optional

Used by

Complex Type

ShortMapping

Attribute Style / Point / Bitmap / @bitmapPath

Namespace

No namespace

Annotations

An (optional )path to search for specific
bitmaps.

Type

xs:string

Properties

use:	optional

Used by

Element

Style/Point/Bitmap

Attribute Style / Point / Bitmap / @extension

Namespace

No namespace

Annotations

The file extension for specific bitmaps
(e. g. '.bmp').

Type

xs:string

Properties

use:	optional

Used by

Element

Style/Point/Bitmap

Attribute Style / Point / @autoplacement

Namespace

No namespace

Annotations

If autoplacement is enabled, symbols and bitmaps are
placed so that they do not cover each other, if possible. By default
autoplacement is disabled.

Type

xs:boolean

Properties

use:	optional

Used by

Element

Style/Point

Attribute Style / GlobalInfo / ObjectID / @attributeName

Namespace

No namespace

Annotations

The attribute name for the
ID.

Type

xs:string

Properties

use:	required

Used by

Element

Style/GlobalInfo/ObjectID

Attribute Search / SortParameter / SortField / @attributeName

Namespace

No namespace

Annotations

The name of the sort
field.

Type

xs:string

Properties

use:	required

Used by

Element

Search/SortParameter/SortField

Attribute Search / SortParameter / SortField / @order

Namespace

No namespace

Annotations

The sort order to use for this
field.

Type

SortOrder

Properties

use:	required

Facets

enumeration

Ascending

The ascending order.

enumeration

Descending

The descending order.

Used by

Element

Search/SortParameter/SortField

Attribute Search / SearchParameter / SearchField / @attributeName

Namespace

No namespace

Annotations

The name of the search
field.

Type

xs:string

Properties

use:	required

Used by

Element

Search/SearchParameter/SearchField

Attribute Search / SearchParameter / SearchField / @fuzzy

Namespace

No namespace

Annotations

The search string must be similar to the
the field content Searching for 'Kalrsruhe' matches
'Karlsruhe'. Please set the minimumSearchSimilarity
attribute of the SearchParameter
element.

Type

xs:boolean

Properties

use:	optional

Used by

Element

Search/SearchParameter/SearchField

Attribute Search / SearchParameter / SearchField / @prefix

Namespace

No namespace

Annotations

The search string must match the field's
beginning. Searching for 'Karl' matches
'Karlsruhe'.

Type

xs:boolean

Properties

use:	optional

Used by

Element

Search/SearchParameter/SearchField

Attribute Search / SearchParameter / SearchField / @multiword

Namespace

No namespace

Annotations

The search string must match one word of
the field content exactly. This can produce a large
result set. Searching for 'city' matches 'city
hall'.

Type

xs:boolean

Properties

use:	optional

Used by

Element

Search/SearchParameter/SearchField

Attribute Search / SearchParameter / @maximumSearchRange

Namespace

No namespace

Annotations

When searching for a location, this defines the search
radius in meters. Default: 300000.

Type

xs:int

Properties

use:	optional

Used by

Element

Search/SearchParameter

Attribute Search / SearchParameter / @countryCodeType

Namespace

No namespace

Annotations

The representation of a country code: 0 country code
(number), 1 ISO2, 2 ISO3, 3 country code plate. Default:
3.

Type

xs:int

Properties

use:	optional

Used by

Element

Search/SearchParameter

Attribute Search / SearchParameter / @minimumSearchSimilarity

Namespace

No namespace

Annotations

The similarity of the fuzzy search is controlled by
this parameter in the interval [0.0,1.0], whereby 1.0 means exact
match and 0.0 means no similarity. Default: 0.7. Please note that
small changes on this value can have large effect on the result
set.

Type

xs:float

Properties

use:	optional

Used by

Element

Search/SearchParameter

Attribute Search / SearchParameter / @maximumResultSize

Namespace

No namespace

Annotations

The maximum result set size. Default: 250. Please note
that the result set is clipped after sorting.

Type

xs:int

Properties

use:	optional

Used by

Element

Search/SearchParameter

Attribute Search / SearchParameter / @padResultList

Namespace

No namespace

Annotations

The result list is padded with less precise results up
to maximumResultSize. Default: false.

Type

xs:boolean

Properties

use:	optional

Used by

Element

Search/SearchParameter

Attribute GeoDataProfile / Routing / Malus / @malusType

Namespace

No namespace

Annotations

The malus type to be applied for
malus values.

Type

MalusType

Properties

use:	required

Facets

enumeration

Relative

The type to use for relative malus values.

enumeration

Absolute

The type to use for absolute malus values.

Used by

Element

GeoDataProfile/Routing/Malus

Attribute GeoDataProfile / @majorVersion

Namespace

No namespace

Annotations

The major version of the document.

Type

xs:int

Properties

use:	required

Used by

Complex Type

GeoDataProfile

Attribute GeoDataProfile / @minorVersion

Namespace

No namespace

Annotations

The minor version of the document.

Type

xs:int

Properties

use:	required

Used by

Complex Type

GeoDataProfile

Attribute BooleanMapping / @value

Namespace

No namespace

Annotations

The target value.

Type

xs:boolean

Properties

use:	optional

Used by

Complex Type

BooleanMapping

Attribute GeoDatasource / Datasource / @driver

Namespace

No namespace

Annotations

The (Java) class name to use for the database
access.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Datasource

Attribute GeoDatasource / Datasource / @url

Namespace

No namespace

Annotations

The connection URL for the database
access.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Datasource

Attribute GeoDatasource / Datasource / @user

Namespace

No namespace

Annotations

The name of the user for the database
access.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Datasource

Attribute GeoDatasource / Datasource / @password

Namespace

No namespace

Annotations

The password of the user for the database
access.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Datasource

Attribute GeoDatasource / Layers / LayerInfo / Profiles / Profile / @name

Namespace

No namespace

Annotations

The name of the
GeoDataProfile.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo/Profiles/Profile

Attribute GeoDatasource / Layers / LayerInfo / Profiles / Profile / @filename

Namespace

No namespace

Annotations

If the GeoDataProfile element is
not set, the file name to load the profile from.
This attribute is not applicable if the
GeoDatasource is set by XML
snippet.

Type

xs:string

Properties

use:	optional

Used by

Element

GeoDatasource/Layers/LayerInfo/Profiles/Profile

Attribute GeoDatasource / Layers / LayerInfo / AttributeMappings / AttributeMapping / @attributeName

Namespace

No namespace

Annotations

The attribute name for the
mapping.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo/AttributeMappings/AttributeMapping

Attribute GeoDatasource / Layers / LayerInfo / AttributeMappings / AttributeMapping / @columnName

Namespace

No namespace

Annotations

The column name for the
mapping.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo/AttributeMappings/AttributeMapping

Attribute GeoDatasource / Layers / LayerInfo / AttributeMappings / AttributeMapping / @type

Namespace

No namespace

Annotations

The datatype of the mapping. Any
primitive Java datatype or 'java.lang.String'. If
not set, the latter is default.

Type

xs:string

Properties

use:	optional

Used by

Element

GeoDatasource/Layers/LayerInfo/AttributeMappings/AttributeMapping

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / BoundingBox / @leftColumnName

Namespace

No namespace

Annotations

The name of the column that sets
the mininum x coordinate of the bounding
box.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters/BoundingBox

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / BoundingBox / @topColumnName

Namespace

No namespace

Annotations

The name of the column that sets
the maximum y coordinate of the bounding
box.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters/BoundingBox

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / BoundingBox / @rightColumnName

Namespace

No namespace

Annotations

The name of the column that sets
the maximum x coordinate of the bounding
box.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters/BoundingBox

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / BoundingBox / @bottomColumnName

Namespace

No namespace

Annotations

The name of the column that sets
the minimum y coordinate of the bounding
box.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters/BoundingBox

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / Rendering / @geometryColumnName

Namespace

No namespace

Annotations

The name of the geometry
column.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters/Rendering

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / Rendering / @geometryType

Namespace

No namespace

Annotations

The geometry type of the
geometry data.

Type

GeometryType

Properties

use:	required

Facets

enumeration

WKB

The geometry type 'Well-Known-Binary'.

enumeration

WKT

The geometry type 'Well-Known-Text'.

enumeration

KML

The geometry type
'Keyhole-Markup-Language'.

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters/Rendering

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / Traffic / @exceptionPathColumnName

Namespace

No namespace

Annotations

The database column containing
the exception path of the traffic
information.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters/Traffic

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / Search / @luceneIndexPath

Namespace

No namespace

Annotations

Sets the path to the Lucene
Index to be used to search for
objects.

Type

xs:string

Properties

use:	optional

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters/Search

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / @poiIdColumnName

Namespace

No namespace

Annotations

Sets optional database column
containing the ID.

Type

xs:string

Properties

use:	optional

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / @aliasTypeColumnName

Namespace

No namespace

Annotations

Sets optional database column
containing the alias type.

Type

xs:string

Properties

use:	optional

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters

Attribute GeoDatasource / Layers / LayerInfo / EngineParameters / @aliasForColumnName

Namespace

No namespace

Annotations

Sets optional database column
containing the alias.

Type

xs:string

Properties

use:	optional

Used by

Element

GeoDatasource/Layers/LayerInfo/EngineParameters

Attribute GeoDatasource / Layers / LayerInfo / @name

Namespace

No namespace

Annotations

The identifying name of the
layer.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo

Attribute GeoDatasource / Layers / LayerInfo / @coordType

Namespace

No namespace

Annotations

The coordinate format used by the
layer data.

Type

CoordType

Properties

use:	required

Facets

enumeration

OG_GEODECIMAL

OpenGIS representation of WGS 84 co-ordinates. Example
x=8.2505556, y=48.7627778.

enumeration

PTV_MERCATOR

Mercator projection. Example x=917420,
y=6227729.

enumeration

PTV_GEOMINSEC

PTV representation of co-ordinates by degree, minute, and
second. Example x=815020, y=4845460.

enumeration

PTV_GEODECIMAL

PTV representation of WGS 84 co-ordinates. Example x=825056,
y=4876278.

enumeration

PTV_CONFORM

PTV representation of conform co-ordinates. Example x=1672358,
y=1620743.

enumeration

PTV_SUPERCONFORM

PTV representation of super-conform co-ordinates. Example
x=5072358, y=3320743.

enumeration

PTV_SMARTUNITS

PTV internal co-ordinate format. Example x=4352286,
y=5456405.

Used by

Element

GeoDatasource/Layers/LayerInfo

Attribute GeoDatasource / Layers / LayerInfo / @table

Namespace

No namespace

Annotations

The database table name containing the
layer data.

Type

xs:string

Properties

use:	required

Used by

Element

GeoDatasource/Layers/LayerInfo

Attribute GeoDatasource / Layers / LayerInfo / @fetchSize

Namespace

No namespace

Annotations

Optional attribute to optimize the
fetch size for select operations. The default fetch
size is 20.

Type

xs:int

Properties

use:	optional

Used by

Element

GeoDatasource/Layers/LayerInfo

Attribute GeoDatasource / Layers / LayerInfo / @maxRows

Namespace

No namespace

Annotations

Optional attribute to set the maximum
number of rows for select operations. The default
row size is 100000.

Type

xs:int

Properties

use:	optional

Used by

Element

GeoDatasource/Layers/LayerInfo

Attribute GeoDatasource / Layers / @default

Namespace

No namespace

Annotations

The default layer used for xLocate poi search
backward compatiblity.

Type

xs:string

Properties

use:	optional

Used by

Element

GeoDatasource/Layers

Attribute GeoDatasource / @name

Namespace

No namespace

Annotations

The identifying name of the geodatasource

Type

xs:string

Properties

use:	optional

Used by

Complex Type

GeoDatasource

Attribute GeoDatasource / @majorVersion

Namespace

No namespace

Annotations

The major version of the document.

Type

xs:int

Properties

use:	required

Used by

Complex Type

GeoDatasource

Attribute GeoDatasource / @minorVersion

Namespace

No namespace

Annotations

The minor version of the document.

Type

xs:int

Properties

use:	required

Used by

Complex Type

GeoDatasource
